Rosemount 3051 Pressure Transmitters deliver industry-leading precision for differential, absolute, and gauge pressure measurement, helping optimize process efficiency and reduce downtime in demanding industrial environments. Featuring advanced Power Advisory Diagnostics and Local Operator Interface (LOI), these rugged transmitters enable fast installation and simplified commissioning while withstanding harsh operating conditions.
At JCSCMRO, we offer cost-effective solutions including New Surplus, Factory Direct, and Certified Reconditioned 3051 transmitters - all backed by our rapid delivery guarantee and expert technical support to keep your operations running smoothly.

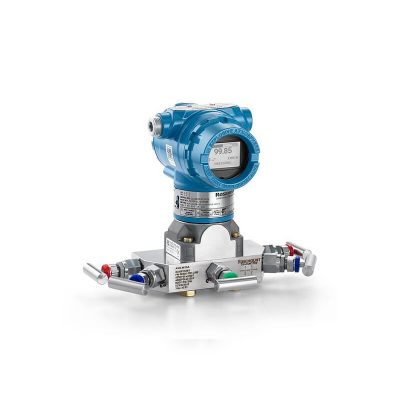

RoseMount 3051 Series
| Specification | Details |
|---|---|
| Warranty | Up to 5-year limited warranty |
| Range down | Up to 150:1 |
| Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
| Communication Protocol | 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART |
| Available Models | 3051CD, 3051CA, 3051CG, 3051TG, 3051TA, 3051L |

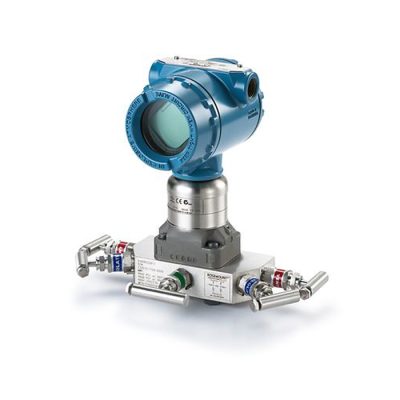

RoseMount 3051S Series
| Specification | Details |
|---|---|
| Warranty | Up to 5-year limited warranty |
| Range down | Up to 200:1 |
| Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
| Communication Protocol | 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus |
| Available Models | 3051S1CD, 3051S1CG, 3051S1TG, 3051S1TA, 3051SAL, 3051S2CD, 3051S2CG, 3051S2TG, 3051S2TA |
Why Rosemount 3051 Pressure Transmitters
In addition to the above-mentioned features, all Rosemount 3051 series pressure transmitters assure the following:
- Reference accuracy of up to 0.04%
- Five-year stability on first installations
- Unmatched performance in dynamic applications
- Advanced Plant Web functionality to improve the productivity of plants
- Improved performance when integrated with DP level, DP flowmeters, and manifolds
Features of the Rosemount 3051 Series Transmitters
Over the years, Rosemount 3051 Series transmitters have gained immense popularity across industries, owing to their following beneficial features:
- Process Alerts: Advanced diagnostics create process alerts, which allow process owners to make necessary adjustments at the right time. Power advisory diagnostics will help monitor and detect issues pertaining to the power supply, grounding, wiring, and so on. Similarly, temperature alerts can also be set to understand if the process temperature has peaked or dropped down. This provides enough insights into the maintenance and safety measures to be adopted.
- Local Operator Interface (LOI): This is designed according to Human-Centered Design principles. The interface has in-built configuration buttons that enable quick commissioning.
- Wireless Technology: This technology helps add new pressure measurement points easily in many areas within the plant, which were earlier not accessible. The information provided by the transmitter helps optimize process efficiencies, as well as reduce human intervention in hazardous areas.
- Hygienic Offering: Rosemount 3051 transmitters meet the requirements of hygienic applications. They are constructed in compliance with industry standards, as well as regulations. These transmitters are provided in stainless steel and aluminum housing. The transmitters are rated up to IP689K, and they can easily withstand sterilize-in-place as well as clean-in-place processes. They can be returned to the calibrated set point easily.
