Part Number:?3051CD0A02A1KS5B4M5Q4
Integral Manifold:?0305RC52B11

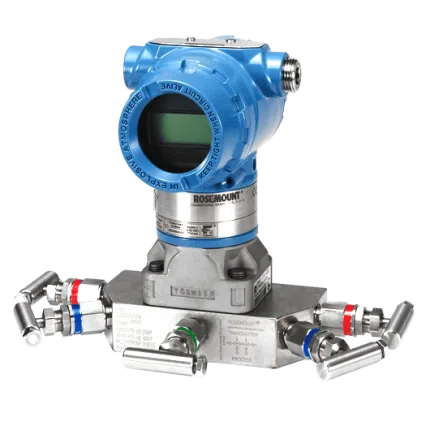

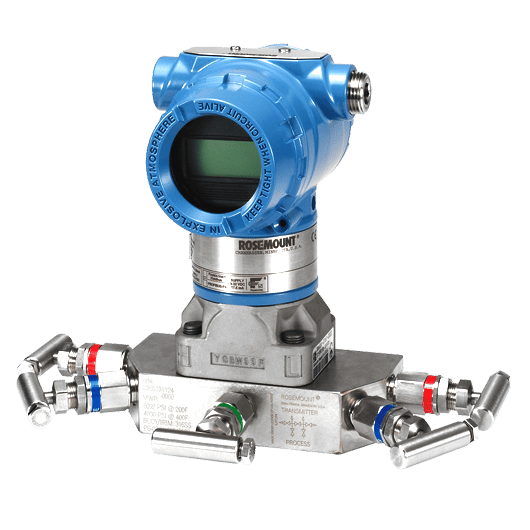

Model:?3051C Coplanar Pressure Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 3051C(1) | Coplanar Pressure Transmitter |
| Measurement type | D | Differential |
| Pressure range | 0(2) | -3 to 3 inH2O (-7,46 to 7,46 mbar) |
| Transmitter output | A(3) | 4-20 mA with Digital Signal Based on HART Protocol |
| Materials of construction | 0 | Alternate Process Connection |
| Isolating diaphragm | 2(4) | 316L SST |
| O-ring | A | Glass-filled PTFE |
| Sensor fill fluid | 1 | Silicone |
| Housing material | K | SST Conduit entry size:?M20 ?? 1.5 |
| Manifold assembly(5) | S5 | Assemble to Rosemount 305 Integral Manifold |
| Mounting bracket(6) | B4 | Coplanar flange bracket, all SST, 2-in. pipe and panel |
| Display and interface options | M5 | LCD Display |
| Calibration certificate | Q4 | Calibration Certificate |
- Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
- 3051CD0 is only available with output code A and X. For output code A, only process flange code 0 (Alternate flange H2, H7, HJ or HK), isolating diaphragm code 2, O ring code A and bolting option L4 are available. For output code X, only process flange code 0 (Alternate flange H2), isolating diaphragm code 2, O ring code A and bolting option L4 are available.
- Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to
HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output. - Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to
certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. - ??Assemble-to?? items are specified separately and require a completed model number.
- Panel mounting bolts are not supplied.
Integral Manifold
| Model | 0305 | Integral manifold |
| Manufacturer | R | Rosemount |
| Manifold style | C | Coplanar |
| Manifold type | 5(1) | Five-valve |
| Materials of construction | 2 | Body:?316 SST/316L SST Bonnet:?316 SST Stem and tip/ball:?316 SST |
| Process connection style | B(2) | ??C14 NPT female |
| Packing material | 1(3) | PTFE |
| Valve seat | 1 | Integral |
- Not available with traditional manifold style T.
- Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.
- Includes PTFE tape on drain/vent valves and plugs.
- Not available with ASME B31.1 manifold type codes 7, 8, and 9.
- Estimated Lead Time: 8 – 12 Weeks
- Shipping Weight: 8 Kg
- Made in Singapore
