Part Number:?3051CD3A02A1AH2B2E5M5D4C4Q4

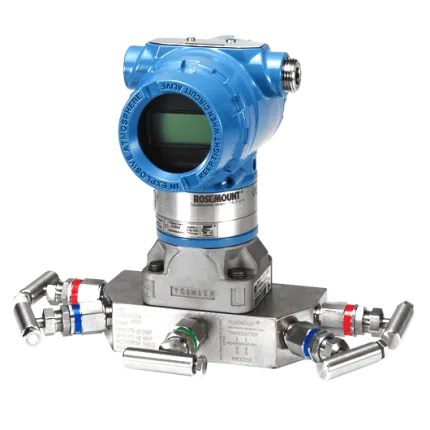

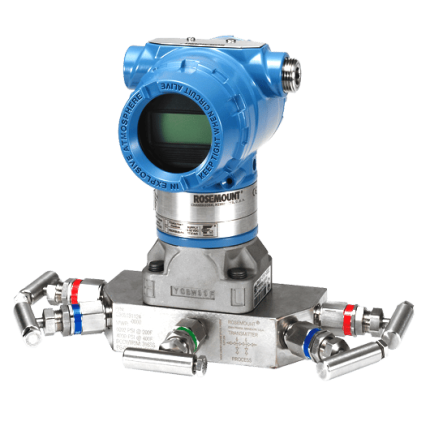

Model:?3051C Coplanar Pressure Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Overview
Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:
- Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0)
- LOI with straightforward menus and built-in configuration buttons (option code M4)
- Safety Certification (option code QT)
Ordering Information
| Model | 3051C(1) | Coplanar Pressure Transmitter |
| Measurement type | D | Differential |
| Pressure range | 3 | ?C1000 to 1000 inH2O (-2,48 to 2,48 mbar) |
| Transmitter output | A(2) | 4 – 20 mA with Digital Signal Based on HART Protocol |
| Materials of construction | 0 | Alternate Process Connection |
| Isolating diaphragm | 2(3) | 316L SST |
| O-ring | A | Glass-filled PTFE |
| Sensor fill fluid | 1 | Silicone |
| A | Housing material:?Aluminum Conduit entry size:???C14 NPT |
|
| Alternate flange(4) | H2 | Traditional Flange, 316 SST, SST drain/vent |
| Mounting bracket(5) | B2 | Traditional flange bracket, CS, panel |
| Product certifications | E5 | FM Explosion-proof, Dust Ignition-Proof |
| Display and interface options | M5 | LCD Display |
| Configuration buttons | D4(6) | Analog Zero and Span |
| Alarm levels | C4(6) | Analog Output Levels Compliant with NAMUR Recommendation NE 43, Alarm High |
| Calibration certificate | Q4 | Calibration Certificate |
- Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
- Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to
HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output. - Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to
certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. - Requires 0 code in Materials of Construction for Alternate Process Connection.
- Panel mounting bolts are not supplied.
- Only available with HART 4-20 mA Output (code A).
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 6 Kg
