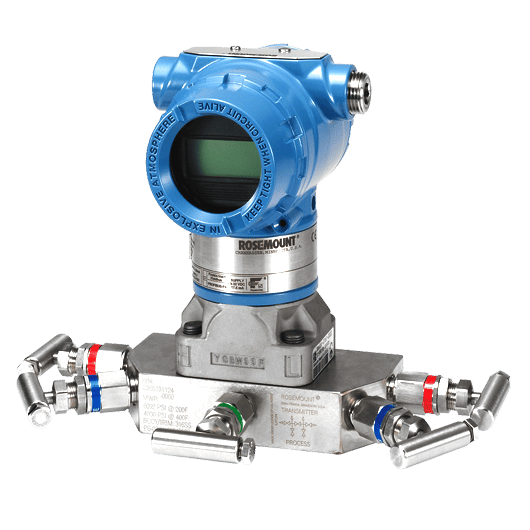

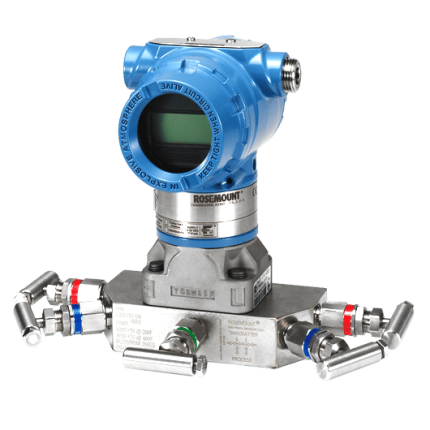

3051CD3A52A1AM5 | Rosemount 3051C Coplanar Pressure Transmitter

Part Number: 3051CD3A52A1AM5

Brand	Rosemount
Measurement Type	Differential Pressure Transmitter

Brand

Rosemount

Measurement Type

Differential Pressure Transmitter

Part Number:?3051CD3A52A1AM5

Ordering Information

Model:?3051C1?-?Coplanar Pressure Transmitter

Measurement type:?D?-?Differential

Pressure range:?3?-??1000 to 1000 inH₂O (-2,48 to 2,48?bar)

Transmitter output:?A2?-?4-20 mA with Digital Signal Based on HART Protocol

Materials of construction:?5?-

[Process flange type]?Coplanar;

[Flange material]?Plated CS;

[Drain/vent]?SST

Isolating diaphragm:?23?-?316L SST

O-ring:?A?-?Glass-filled PTFE

Sensor fill fluid:?1?-?Silicone

Housing material:?A?-?Aluminium; 1/2-14 NPT?[Conduit entry size]

Display and interface options:?M5?-?LCD Display

NOTE:

Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to?HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to?certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
