Part Number: 3051S3CD2A2A11A1JC1D4I7M5P1Q4Q8

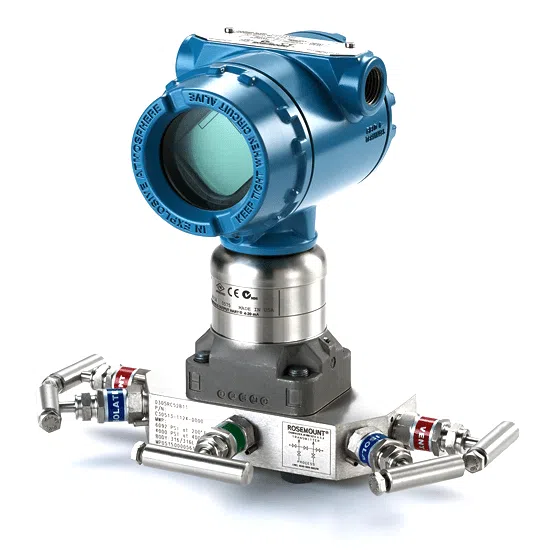

Model: 3051S Scalable Pressure Transmitter
Manufacturer: Rosemount
Specifications
- Rangedown: Up to 200:1
- Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus
- Measurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
- Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
- Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
- Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure Transmitter
Features
- Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution
- Best-in-class, scalable architecture enhances performance, functionality and process connections
- Transmitter arrives fully assembled and leak tested for simple installation and maintenance
- All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy
- Ultra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty
- 200:1 rangedown produce reliable measurements and wide application flexibility
- Integrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
- Remote display and interface offers easy access to process and device information
Ordering Information
- Transmitter type: 3051S – Scalable pressure transmitter
- Performance class¹: 3² – Ultra for Flow: 0.04% reading accuracy, 200:1 turndown, 15-yr stability, 15-yr limited warranty
- Connection type: C – Coplanar
- Measurement type³: D – Diffential
- Pressure range: 2A – -250 to 250 inH20 (-621,60 to 621,60 mbar)
- Isolating diaphragm: 24 – 316L SST
- Process connection: A115 – Assemble to Rosemount 305 integral manifold
- Transmitter output: A – 4-20 mA with digital signal based on HART protocol
- Housing style: 1J – PlantWeb housing
- Software configuration: C16 – Custom software configuration (requires Configuration Data Sheet)
- Ground screw7: D4 – External ground screw assembly
- Product certification8: I7 – lECEx Instrinsic Safety
- Display type9: M5 – PlantWeb LCD display
- Pressure testing10: P1 – Hydrostatic testing with certificate
- Calibration certification: Q4 – Calibration certificate
- Material traceability certification: Q8 – Material treceability certification per EN 10204 3.1
NOTE:
- For detailed specifications see ?Specifications?.
- This option is only available with range codes 2A and 3A, 316L SST or Alloy C-276 isolating diaphragm and silicone fill fluid.
- Performance Class code 3 is available with Measurement Type code D only.
- Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate.
- ?Assemble to? items are specified separately and require a completed model number. Process connection option codes B12, C11, D11, EA2, EA3, and EA5 are only available on differential Measurement Type, code D.
- Not available with output code F.
- This assembly is included with options EP, KP, E1, N1, K1, ND, E4, E7, N7, K7, E2, E3, KA, KC, KD, IA, IB, IE, IF, IG, KG, T1, K2, N3, EM, and KM.
- Valid when SuperModule Platform and housing have equivalent approvals.
- Not available with Housing code 7J.
- P1 is not available with 3051S_CA0.
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 10 Kg
