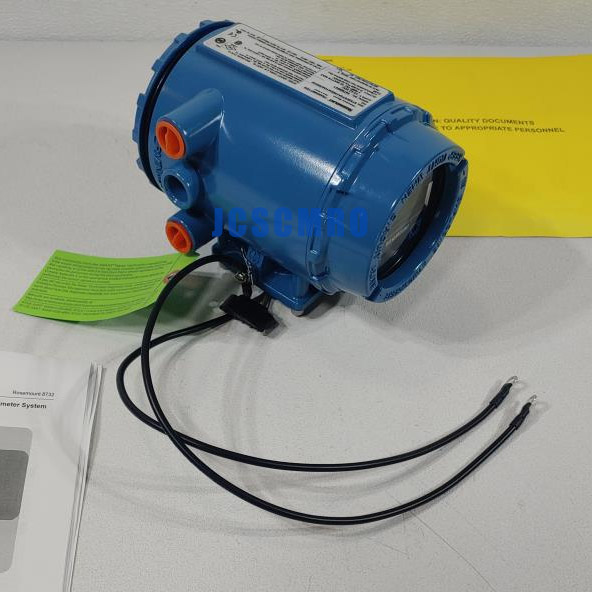

Name: Rosemount 8732E Field Mount Magnetic Flow Meter Transmitter
SKU: 19905
Availability: InStock

Rosemount 8732E Field Mount Magnetic Flow Meter Transmitter

$2,276.00

Part Number: 8732EMT2A2K2M4HR7

Continually monitor meter health and performance without stopping the process with Smart Meter Verification
Prevent moisture ingress with dual-compartment transmitter housing
Improve process management with advanced Digital Signal Processing
Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
Tunable Empty Pipe Diagnostic minimizes issues and false readings when the pipe is empty
Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration
Cut inventory and ensure interface consistency for any magnetic flow meter sensor using Universal Transmitter capability

Accuracy	Up to ±0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, ±0.25% over 40:1 flow turndown
Diagnostic	In Situ Meter Verification, Grounding/Wiring Fault Detection, High Process Noise Detection, Tunable Empty Pipe Detection, Transmitter Fault Detection, Sensor Fault Detection, Electrode Coating
Compatibility	All Rosemount manufactured Sensors: 8705, 8711, 8721, 8707 Universal capabilities allow 8700 Series transmitters to be compatible with AC and DC powered sensors from other manufacturers
Power Supply	90-250 VAC, 50-60 Hz or 12-42 VDC
Power Consumption	15 W maximum - DC 40 VA maximum - AC
Enclosure Rating	8732E: Type 4x, IEC 60529, IP66 8712E: Type 4x, IP66

Description

Part Number: 8732E

All Rosemount manufactured Sensors: 8705, 8711, 8721, 8707

Model: 8732E Field Mount Magnetic Flow Meter Transmitter

Manufacturer: Rosemount

Condition: New & Original in Factory Packing

Factory Warranty: 2 Years

Model	8732EM	Magnetic Flowmeter Transmitter
Transmitter mount	T	Integral Mount
Transmitter power supply	2	DC Power Supply (12 to 42 V DC)
Outputs	A	4-20 mA Digital Electronics (HART Protocol)
Transmitter conduit entries	2	CM20, Conduit Adapters
	K2
Display options	M4	Local Operator Interface (HART and PROFIBUS PA only)
	HR7

SPECIFICATION

Accuracy	Up to ±0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, ±0.25% over 40:1 flow turndown
Diagnostic	In Situ Meter Verification, Grounding/Wiring Fault Detection, High Process Noise Detection, Tunable Empty Pipe Detection, Transmitter Fault Detection, Sensor Fault Detection, Electrode Coating
Compatibility	All Rosemount manufactured Sensors: 8705, 8711, 8721, 8707 Universal capabilities allow 8700 Series transmitters to be compatible with AC and DC powered sensors from other manufacturers
Power Supply	90-250 VAC, 50-60 Hz or 12-42 VDC
Power Consumption	15 W maximum - DC 40 VA maximum - AC
Enclosure Rating	8732E: Type 4x, IEC 60529, IP66 8712E: Type 4x, IP66
