Product Description

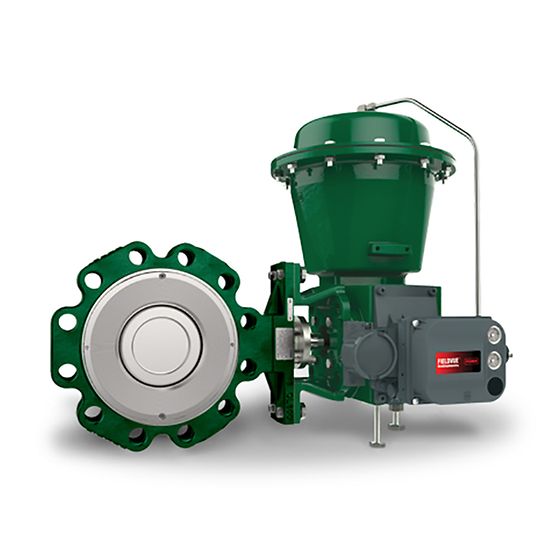

The Fisher 8590 high performance Butterfly valve maintains tight shutoff and can be specified for a wide range of pressure and temperature conditions. The 8590 valve is available in a lugged body design. A splined shaft can combine with a variety of spring-and-diaphragm or pneumatic piston actuators and a square or keyed shaft can combine with a variety of handlevers, handwheels, or pneumatic piston diaphragm actuators.
Specifications
| Specifications | Details |
|---|---|
| Certifications | SIL capable, PED, CRN, Fugitive Emission, NACE, ATEX, CUTR, Fire Safe |
| Critical Service | General Service |
| Flow Characteristics | Linear |
| Material | Carbon Steel, Stainless, Alloy |
| Operating Temperature | Standard Temperature, High Temperature |
| Power Source | Electric, Hydraulic, Pneumatic, Lever, Gear, Electro-Hydraulic |
| Pressure Class | ASME |
| Process Connection Type | Flanged, Single Flanged, Double Flanged, Lugged |
| Seat / Seal Type | Metal, Soft |
| Shutoff Class | Class IV (FCI 70-2), Class VI (FCI 70-2) |
| Standards | B16.34 |
| Stem | Live Loaded, Adjustable Packing |
| Valve Size | NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 12, NPS 14, NPS 16, NPS 18, NPS 20, NPS 24 |
| Valve Size Standard | NPS |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Features
- This valve will meet your actuator needs with a choice of splined, square, or keyed shaft connections.
- The pressure-assisted seal design provides tight shutoff and permits the use of smaller, less expensive actuators in applications requiring full ASME B16.34 shutoff capabilities.
- The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live-loading to provide improved sealing, guiding, and loading force transmission.
- Trim and bolting materials are available for applications involving sour liquids and gases.
- The valve body self-centers on the line flange bolts as a fast, accurate means of centering the valve in the pipeline.
- Seal retainer screws are located so there is no interference with the sealing function.
- The torque necessary to open and close the valves is the same, regardless of the direction in which the differential pressure is applied.
JCSCMRO proudly supplies the Fisher 8590 High Performance Butterfly Valve, a robust solution trusted for critical industrial applications. Engineered to meet stringent standards like API 609 and Fire-Safe certifications, these valves deliver zero-leakage performance and long-term durability, even in high-pressure or corrosive environments. While maintaining competitive pricing without compromising quality, we ensure fast global shipping and flexible bulk order options. Our dedicated after-sales team provides 24/7 technical support, helping you minimize downtime and optimize valve lifecycle costs. Partner with JCSCMRO for reliability, efficiency, and a hassle-free procurement experience.
