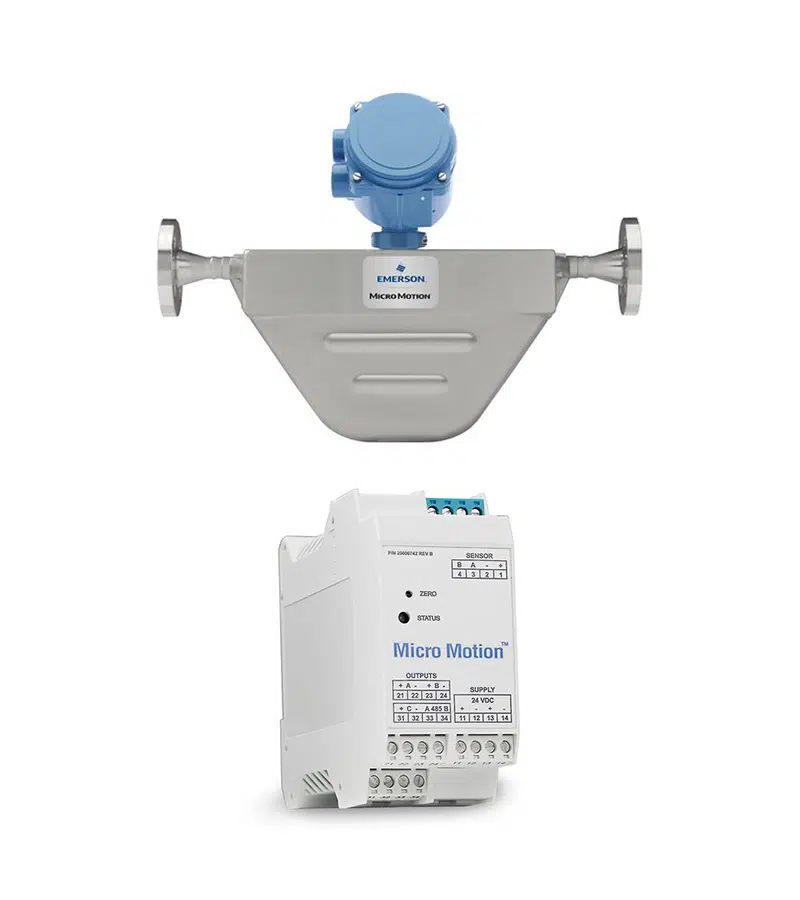

Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 4200 Transmitter
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 4200 Transmitter $2,328.00
Back to products
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 1500 Transmitter
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 1500 Transmitter $2,328.00

Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 2500 Transmitter

$2,328.00

As a supplier, we offer the Micro Motion F-Series Coriolis Meter, which includes the F050P sensor and 2500 transmitter. This high-performance combination, made from 316L stainless steel, provides exceptional accuracy in mass and volume flow measurements under high pressure, suitable for various industrial applications. Our products come with multiple international certifications, ensuring reliability in diverse environments. With a strong supply chain, we maintain ample stock to quickly respond to customer needs, alongside comprehensive technical support and excellent after-sales service to help clients enhance production efficiency. By choosing our Micro Motion F-Series meter, you gain high-precision measurement and an outstanding service experience.

Brand

Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 5,000 psig (344 barg)
Meter Approvals, Calibrations, and Certifications • UL
• CSA
• IECEx
• NEPSI
• ATEX
• Ingress Protection
• EMC effects
Micro Motion 2500 Compact Control Room Multivariable Flow and Density Transmitter
Output Variables • Mass & Volume Flow
• Net Product Content / Flow
• Temperature
• Density
• Concentration
Local Display None
Power • Minimum 19.2 to 28.8 VDC
• 6.3 watts
• Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements
Input/Output Signals • One active 4–20 mA output
• One active frequency output
HART Bell 202 signal is superimposed on the primary milliamp output
Mounting Options Mounted on 35 mm rail (rail must be grounded)
Application Types • Continuous Process Control
• Two-Phase Flow/Entrained Gas
• Meter Verification
Hazardous Approvals Suitable for non-hazardous environments only
Features
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Measurement Capability Highly accurate mass volume flow and density measurement in compact, drainable design
Materials Available 316L Stainless Steel and C-22 nickel alloy in all sizes
Additional Features Available with rupture disk or purge fitting case
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Certifications Broad range of meter approvals including:
CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D),
ATEX, IECEx, Ingress Protection 66/67, NAMUR
Custody Transfer Approvals MID OIML R 117, National Type Evaluation Program (NTEP),
Measurement Canada, INMETRO Brazil
Response Rates Fastest response rates and accurate batch and process measurement with MVD transmitter technology
Integrity Assurance Real-time and in-process measurement integrity assurance with Smart Meter Verification
3D Model Interaction Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters
Micro Motion 2500 Compact Control Room Multivariable Flow and Density Transmitter
Wiring Cost Savings Cut wiring expenses with remote-mount transmitter using 35 mm DIN rail
Space Requirement Easily fits in control rooms – only 0.03 ft³ space requirement versus 1.0 ft³ typically for Coriolis transmitters
Configuration Simplified configuration with a four-wire connection to sensors for power and signal
Performance Diagnostics Diagnose performance under entrained gas and batching from empty applications with MVD digital processing
Integrity Assurance Real-time and in-process measurement integrity assurance with Smart Meter Verification
