As a B2B supplier, the Micro Motion F025A Coriolis Meter offers competitive pricing and robust supply chain capabilities, ensuring fast delivery. Our efficient inventory management and comprehensive after-sales support, including technical assistance, help you maintain smooth operations and enhance efficiency and cost-effectiveness. Choose the F025A to invest in a high-quality measurement solution and gain a reliable partner.
| Specification | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |

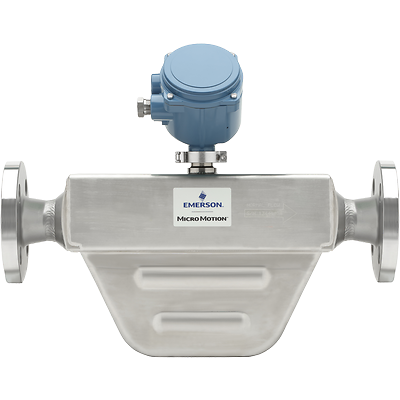

Micro Motion F025A Coriolis Meter
