Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 1700 Transmitter

$2,526.00

As a supplier of high-quality measurement equipment, the Micro Motion H-Series Hygienic Coriolis Meter combines the H400S sensor and the 1700 transmitter, specifically designed for strict hygienic environments, providing high-precision flow and density measurements. The H400S features a 316L stainless steel construction with a self-draining design, ensuring quick changeovers and consistency. The 1700 transmitter offers intelligent meter verification, continuously monitoring key parameters. This system is certified by multiple standards, enhancing production efficiency and product quality. Choose us for exceptional technical support and service.

Brand

Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion 1700 Single Variable Field Mount Flow Transmitter
Output Variables Mass flow, Volume flow
Local Display Standard user interface with 2-line LCD panel
Optical Switches Two optical switches for local operation
Power Self-switching AC/DC input, 85 to 265 VAC, 50/60 Hz, 6 watts typical
Input/Output Signals One active 4–20 mA output, One active frequency output
Mounting Options Field-mount, integrally mounted to Micro Motion sensors
Application Types Continuous process control, Two-phase flow/entrained gas
Hazardous Approvals Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2
Features
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Minimize Variability Superior sensitivity in a compact design
Product Consistency Superior density measurement
Fast Product Change-over Self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with surface finish up to 15 Ra
Real-Time Measurement Integrity Smart Meter Verification
Two-Phase Flow Capabilities For batching, loading, and entrained air applications
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Compliance SIP, CIP, and sanitary environments with 3-A compliance
Micro Motion 1700 Single Variable Field Mount Flow Transmitter
Mounting Flexibility Integral or remote mounting
Performance Diagnostics MVD digital processing for entrained gas and batching from empty applications
Wiring Costs Lower costs and easy installation
Measurement Capability Concentration and net flow measurement without additional instruments
Custody-Transfer Approval Certification for SIL2 and SIL3
Real-Time Measurement Integrity Smart Meter Verification
WirelessHART™ Access Additional diagnostics without added wiring costs
Housing Rugged Class I, Division 1 / Zone 1 with optional local operator interface

JCSCMRO
Get A Quote
Carry
Customer Service Expert
Get A Quote

    Related products

    H400S Sensor and 1600 Transmitter

    Micro Motion™ H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 1600 Transmitter

    Micro Motion
    $2,526.00
    H400S Sensor and 2500 Transmitter

    Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 2500 Transmitter

    Micro Motion
    $2,526.00
    H400S Sensor and 3500 Transmitter

    Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 3500 Transmitter

    Micro Motion
    $2,526.00
    H400S Sensor and 1500 Transmitter

    Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 1500 Transmitter

    Micro Motion
    $2,526.00
    H400S Sensor and 3700 Transmitter

    Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 3700 Transmitter

    Micro Motion
    $2,526.00

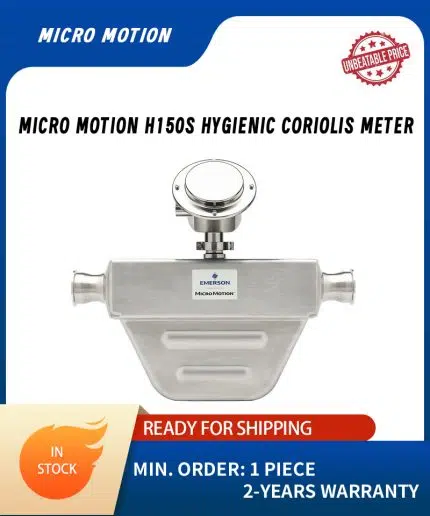

    H150S Hygienic Coriolis Meter
