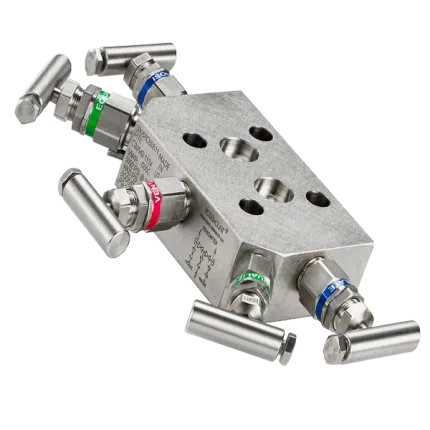

Rosemount 304 Conventional Manifold

Engineered for 2-, 3- and 5-valve configurations, the Rosemount 304 Conventional Manifold attaches to a transmitter with a traditional or coplanar flange. This manifold is available in traditional and wafer styles and is factory-assembled to transmitters, leak-tested and calibrated for quick installation. Designed for multivariable, static and differential pressure transmitters, this manifold allows instrument isolation, controlled venting and protection from leaking to ensure measurement integrity.

• Assembles to transmitter flange in accordance with IEC 61518
• Traditional (Flange x Flange and Flange x NPT) and wafer manifold styles meet a wide range of applications
• 2-,3- and 5-valve configuration for assembly to multi-variable, absolute, gage and differential pressure transmitters
• Manifold can be factory-assembled to a transmitter, leak-tested and calibrated for quick installation
• 5-valve natural gas configuration available for extra protection from leaking to ensure DP signal integrity
