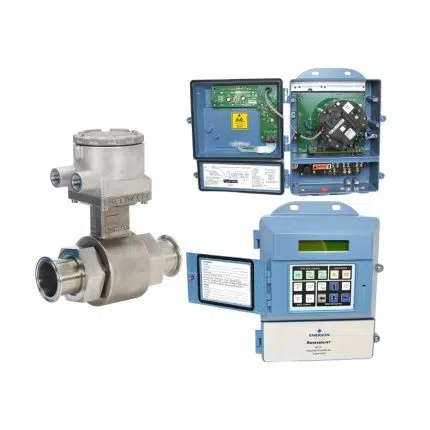

| Rosemount 8705240 Flanged Magnetic Flow Meter Sensor, 24 Inch (DN600) |
|---|
| Accuracy: Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
Line Sizes: ½-36 inch (15-900 mm) Liner Materials: PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber, Consult factory for additional material options Electrode Materials: ASME B16.5 Class 150-2500 DIN PN 10-40 AS 2129 Table D and E AWWA C207 Table 3 Class D (30-36 inch only) |
| Rosemount 8712E Magnetic Flow Meter Transmitter |
|---|
| Accuracy: Up to ±0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, ±0.25% over 40:1 flow turndown.
Diagnostic: In Situ Meter Verification, Grounding & Wiring Fault Detection, High Process Noise Detection, Tunable Empty Pipe Detection, Transmitter Fault Detection, Sensor Fault Detection Compatibility: All Rosemount manufactured Sensors: 8705, 8711, 8721, 8707. Universal capabilities allow E-Series transmitters to be compatible with AC and DC powered sensors from other manufacturers. Power Supply: 90-250 VAC, 50-60 Hz or 12-42 VDC. Power consumption: 15 W maximum – DC, 40 VA maximum – AC Enclosure Rating: 8712E: Type 4x, IP66 |
