Part Number: STF72F-41HS1A-S00-0-AHC-11SA-01A6-TP,FX,F1-0000

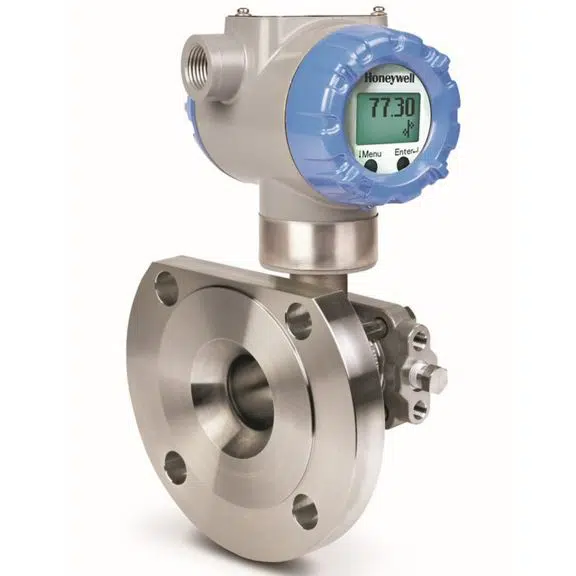

Model: STF72F SmartLine Flange-Mounted Level Transmitter
Manufacturer: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STF72F | Flange Mounted Liquid Level Transmitter |
| Process Wetted Heads & Diaphragm Materials | 4 | Design: Pseudo Flange Ref. Head: 316 SS(1) Vent DrainValve on Ref. Head(2): 316 SS Barrier Diaphrm. (wetted): 316 SS Diaphrm. Plate (wetted): N/A Extension (wetted): N/A |
| Fill Fluid (Meter Body & Flange) | 1 | Silicone Oil 200 |
| Process Connection | H | Reference Head: 1/2 NPT Adapter – material matches head material and head bolt material(3) Flange: High Pressure Side |
| Bolts for Process Heads | S | 316 SS Bolts |
| Vent/Drain Type/Location | 1 | Ref. Head Type: Single Ended Vent Type: None Location: None Vent Material: None |
| Gasket Material | A | Teflon® or PTFE (Glass Filled) |
| Flange(ANSI Flanges have125-500 AARH Surface Finish) | S | 2\’ ANSI Class 150 without Vent/Drain Flange Material: 316L SS (wetted) Threaded Nut Ring Material: Not applicable |
| Gasket Ring (wetted) | 0 | No selection |
| Extension (wetted) | 0 | No selection |
| Approvals | 0 | No Approval Required |
| Electronic Housing Material & Connection Type | A | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | C | Indicator: Basic Ext Zero, Span & Config Buttons: Yes Languages: English |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High > 21.0mAdc High & Low Output Limits(4): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | None (not required with flange mount unit) |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A6 | 1/2 NPT 316 SS Certified Conduit Plug |
| Certifications & Warranty | TP FX F1 |
Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) EN10204 Type 3.1 Material Traceability (FC33341) Calibration Test Report & Certificate of Conformance (F3399) |
| Factory | 0000 | Factory Identification |
- Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.
- Vent/Drains are Teflon or PTFE coated for lubricity.
- Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 12 Kg
