Part Number: STR73D-11CS3B0-AFAAA21BS-A-EFB-16S-A-11A0

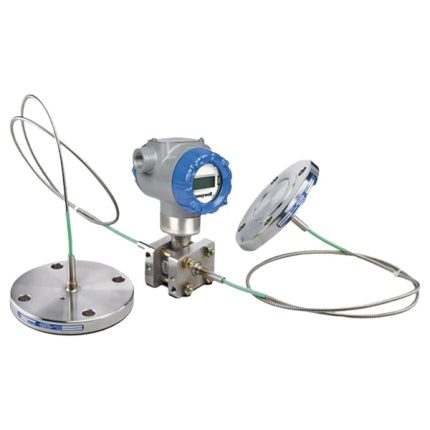

Model: STR700 SmartLine Pressure Transmitter with Remote Diaphragm Seals
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR73D | STR700 SmartLine Remote Diaphragm Seals |
| Number of Seals | 1 | 1 Remote Seal (High Side) |
| Primary Fill Fluid (Meter body) | 1 | Silicone Oil 200 |
| Construction: Dual Head DP | C | Non-Wetted Adapter Head Materials: 316 SS (bolt-on heads) |
| Bolts and Nuts for Transmitter Heads | S | 316 SS Bolts and Nuts |
| Secondary Fill Fluid (capillary & seal)** | 3 | Silicone Oil 704 |
| Connection of Remote Seal to Meter Body** | B | Capillary Length: 10 feet (3.0 m), SS Armor |
| Seal Option** | 0 | None |
| Flush Flanged Seal** | AFA | Diaphragm Diameter: 3.5\’ Flange Size: 3\’ Flange Pressure Rating(1): ANSI Class 150 |
| Wetted Material | AA | Diaphragm: 316L SS Upper Insert: 316L SS |
| Non-Wetted Material (upper) | 2 | 316L SS |
| Seal-Capillary Connection | 1 | Center Seal |
| Calibration Rings | B | 316L SS |
| Flushing Connections and Plugs(2) | S | Two 1/2\’ with metal plugs |
| Approvals | A | FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | E | Material: 316 Stainless Steel (Grade CF8M) Connection: 1/2 NPT Lightning Protection: None |
| Output/ Protocol | F | Analog Output: none Digital Protocol: Foundation Fieldbus |
| Customer Interface Selections | B | Indicator: Basic Ext Zero, Span & Config Buttons: None Languages: English |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 6 | Write Protect: Disabled Fail Mode: N/A High & Low Output Limits(3): N/A Fieldbus |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 1 | Bracket Type: Angle Bracket Material: Carbon Steel |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
** Refer to 34-ST-00-128 for additional options, consult factory
- Standard facing 125-250 AARH RF (raised face) serrated surface finish.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation.
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc.
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 13 Kg
