Introduction

In industrial process control, pressure transmitters play an important role in accurate measurement and stable operation. For field engineers, one common maintenance task is checking HART communication and performing zero trim when the transmitter shows a small offset at zero input.

This guide explains how to connect a Rosemount 3051Pro pressure transmitter to a HART communicator, access the service menu, perform zero trim, and verify the result step by step.

1. Prepare the HART Wiring Connection

Before starting communication, make sure the transmitter is correctly wired in the loop. A typical HART connection requires a 24 VDC power supply and a minimum 250 Ω load resistor. The HART communicator is connected across the loop to detect and communicate with the transmitter.

Correct wiring is the foundation for successful device communication and field calibration.

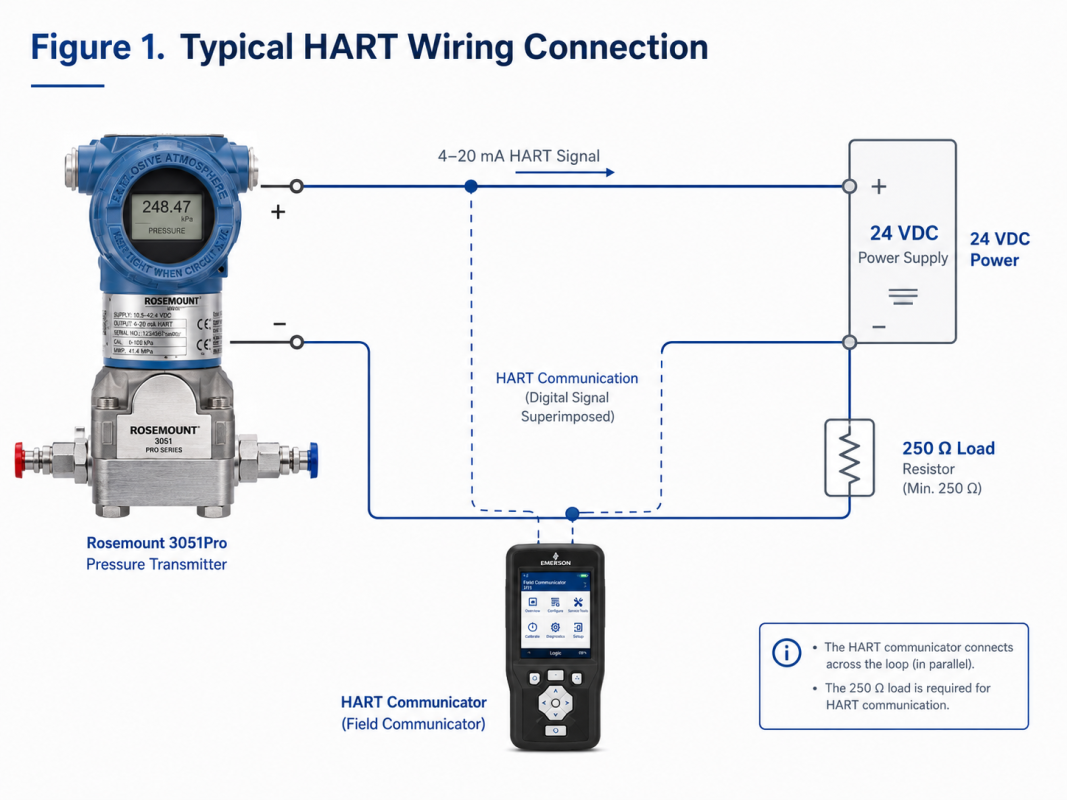

Figure 1. Typical HART Wiring Connection

2. Connect the HART Communicator

After the loop is properly wired, connect the communicator leads to the transmitter test terminals. Then power on the field communicator and open the communication menu.

Select HART from the available communication options. If no loop power is detected, provide loop power if required by the site condition. Once the loop is ready, the communicator will establish communication with the transmitter.

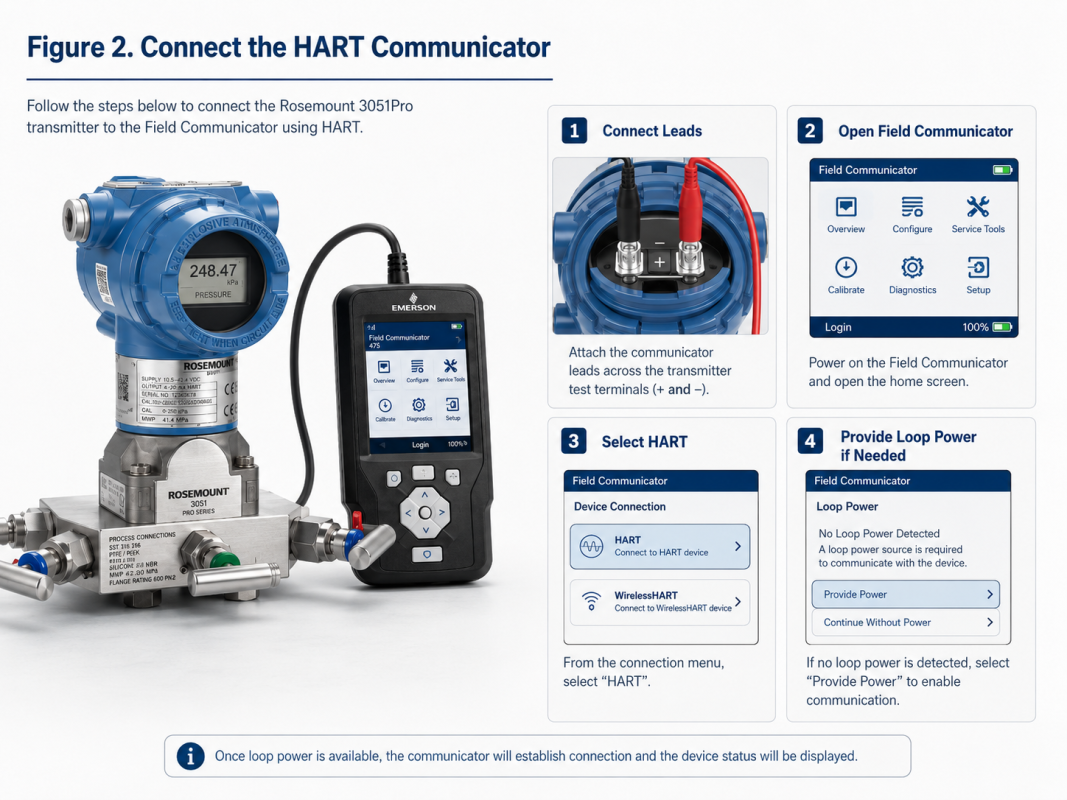

Figure 2. Connect the HART Communicator

3. Zero Trim Menu Path

After communication is established, enter the service menu and follow the zero trim path:

Service Tools → Maintenance → Pressure Calibration → Zero Trim → OK

Zero trim is used to correct the transmitter’s zero point when the sensor input is at zero pressure. This helps improve low-end measurement accuracy and keeps the output stable during normal operation.

Figure 3. Zero Trim Menu Path

4. Verify the Zero Trim Result

Before zero trim, the transmitter may show a small negative or positive pressure value even when the actual input is zero. After zero trim is completed successfully, the pressure value should return close to 0.00 kPa, and the analog output should return to the expected value.

Always confirm that the sensor input is truly at zero pressure before applying zero trim. Incorrect operation may affect measurement accuracy.

Figure 4. Verify the Zero Trim Result

5. Field Notes

Zero trim is a simple but important field maintenance operation. It should only be performed under safe and correct zero-pressure conditions.
